Industrial gear units

ZOLLERN industrial gears are planetary gears designed for continuous use. They have been proven under extreme application conditions and in special applications.

The industrial gears are based on a modular system. They are available with a motor, coupling and brake. Different output and drive variants are available. Combinations with bevel gears and spur gears are possible.

  • 19 overall sizes
  • Power range of 1,000 Nm to 4,000,000 Nm (as a standard)
  • Gear ratios 17 to 4,680 (as a standard)
  • Expanded scope of delivery, such as couplings, brakes, electric/hydraulic motors
  • Different output and drive variants
  • Combination with bevel gears and spur gears
  • Application-specific solutions

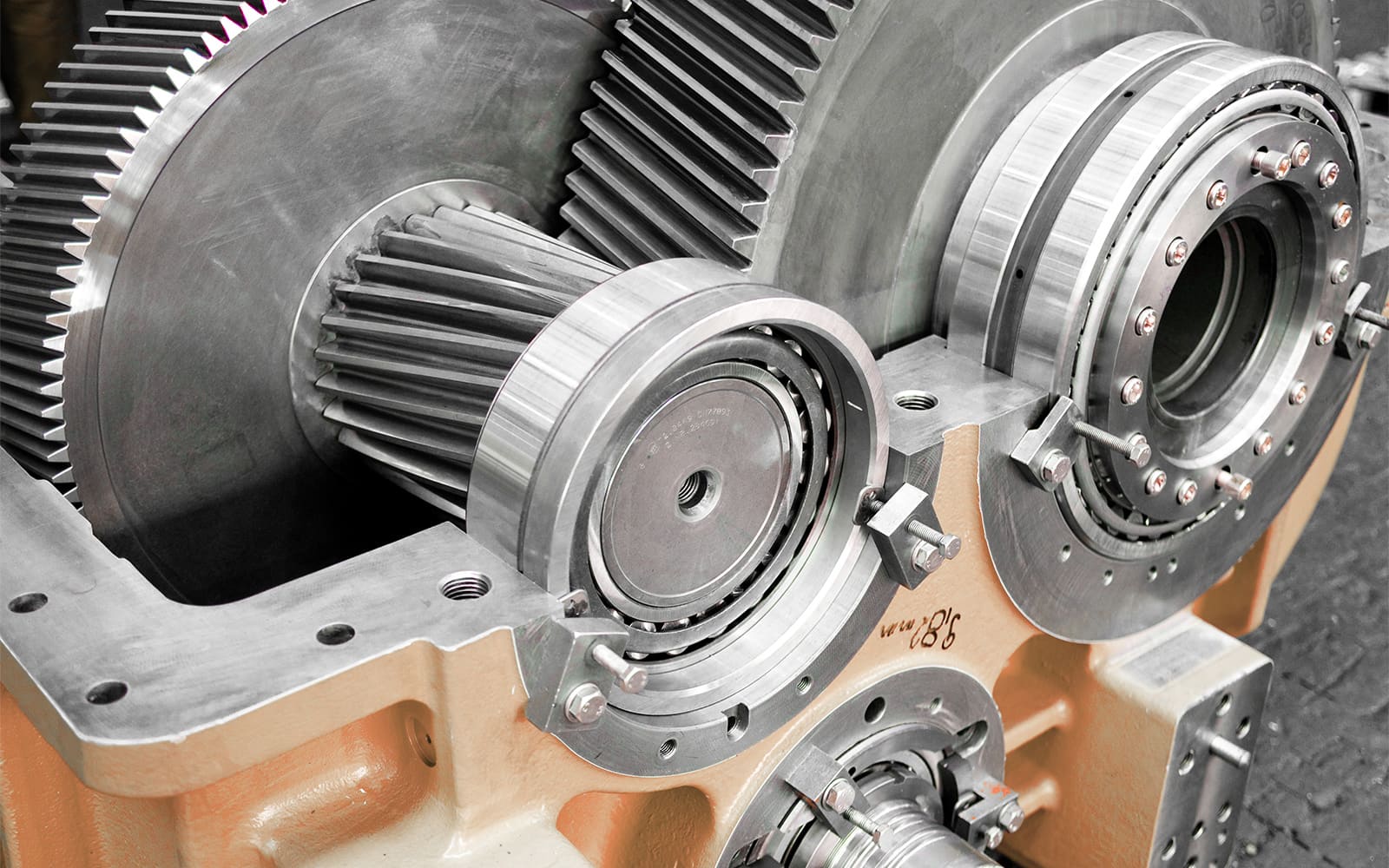

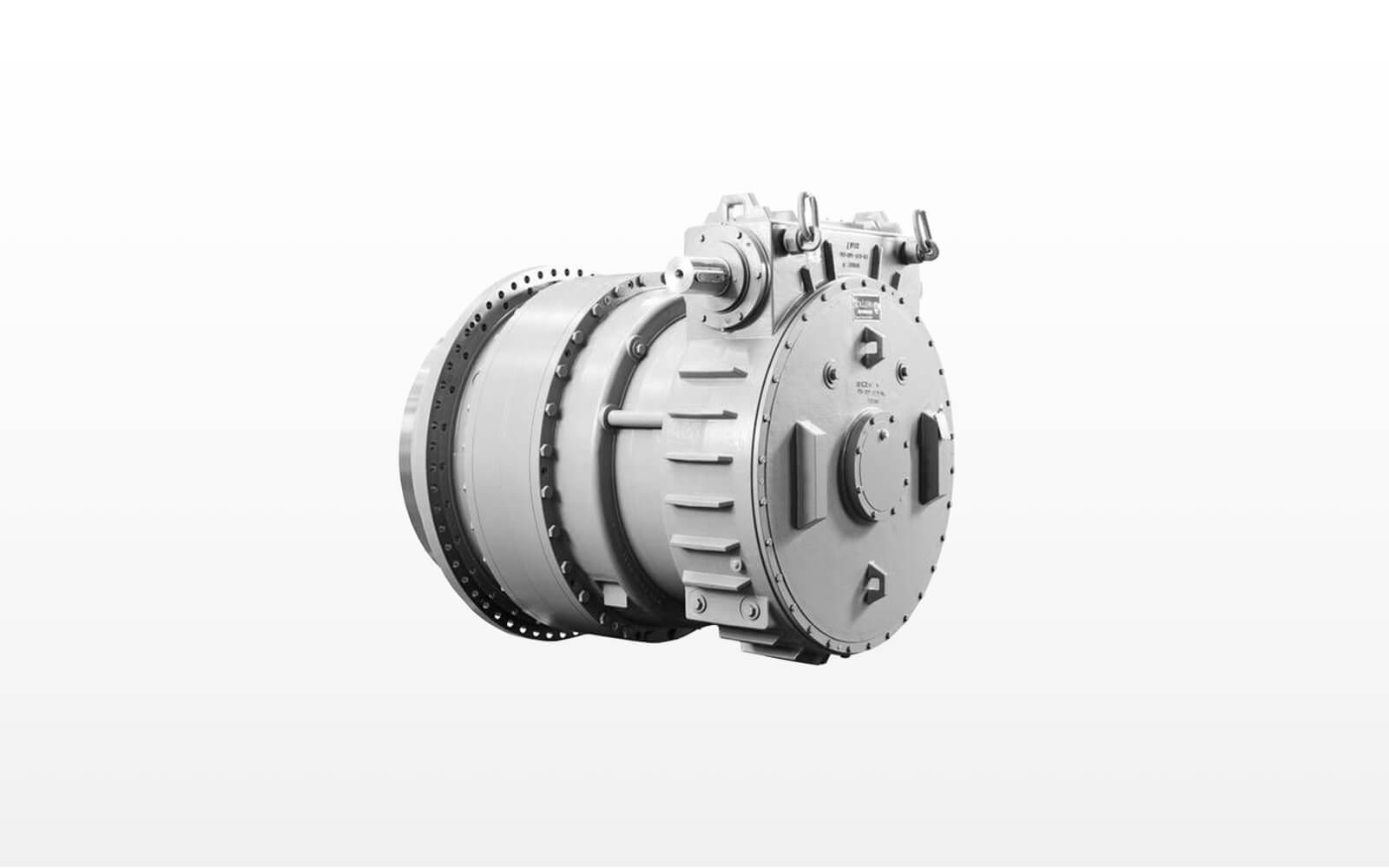

Product examples

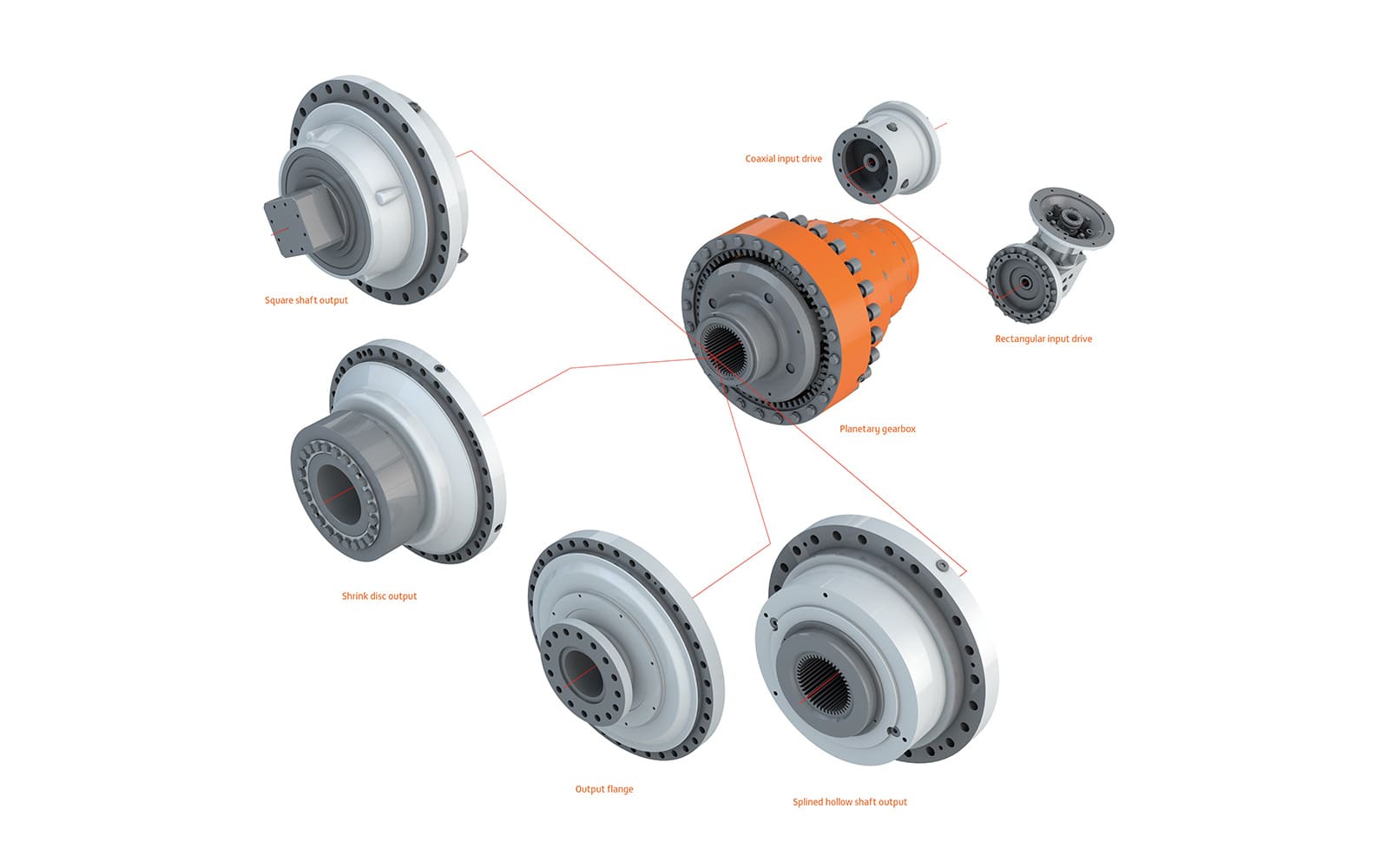

Possible configurations

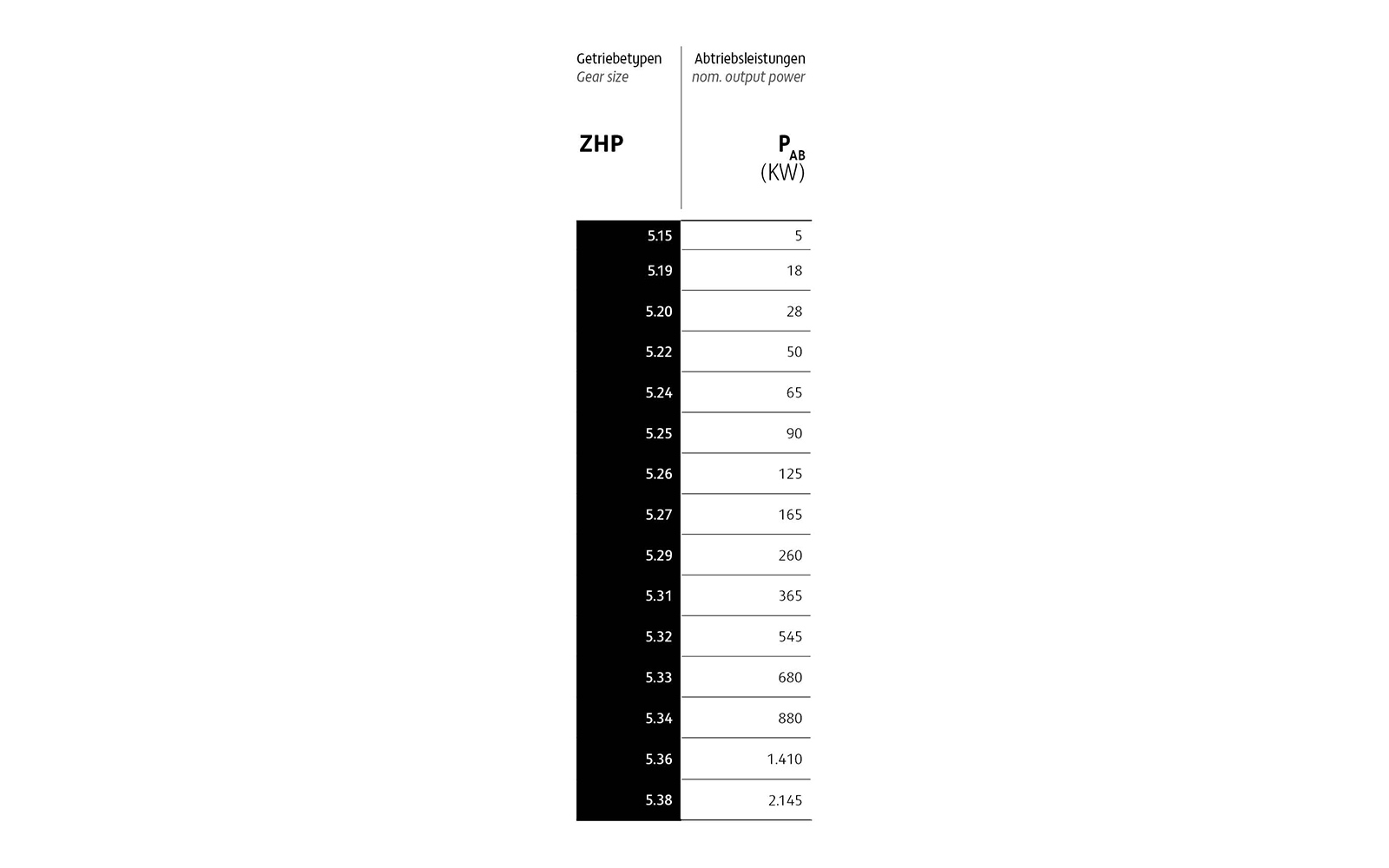

Overall sizes

Gear sizes ZHP 5.15 (1,000 Nm) to ZHP 5.46 (4,000,000 Nm)

Gear combinations

Combination of planetary gears, spur gears and bevel gears, special gears, also as manual gear units, from 5,000 Nm to 6,000,000 Nm

  • Marine: Ship crane, mobile harbour crane, heavy duty crane, shipyard cranes, handling equipment
  • Construction machine: Drilling rig, tunnel boring machine
  • Industry: Sugar mills, stacker reclaimers, bucket wheel excavators, mining excavators, roller presses, extruders, calenders
