Individual component solutions

ZOLLERN offers individual component solutions and customer-specific castings from large series to individual pieces. We are development partners for our customers and one of the leading foundries in Europe with more than 1,000 employees in the casting business area.

Casting is a precision process. It offers tremendous freedom of design. The wide range of possible alloys makes economic solutions possible for the most varied of applications.

Specials
  • Over 500 alloys in-house
  • Unlimited design freedom, near net shape
  • Accurate machining tolerances allowance 0,3 - 1,5 mm
  • Economic solutions
  • The highest quality level
  • Materials development
  • Concurrent engineering
  • Customer service worldwide
Applications

Automotive

Investment cast components are established in the automotive industry due to their enormous performance capability. ZOLLERN meets the demand for efficiency and performance with its high-quality components, such as turbine wheels for turbochargers. In the investment casting process, highly complex geometries can be reproduced in the most resistant materials with the highest process reliability.

  • Turbine wheels
  • Flap plates and bushings
  • VTG vanes - guide vanes
  • Finger followers
  • Planet carriers
  • Wheel carriers
  • Brakets Formula 1
  • Housing

Description: Waste gate valve
Application: Turbocharger
Material: High heat resisting steel and nickel based alloys, e.g. 1.4848, 1.4957, Inconel 713C
Manufacturing Process: Open air or vacuum investment casting
Machining & Assembly: Turning, milling, caulking, welding (EB or laser) etc.
Weight: 80 - 120 g
Customer: BMTS, BorgWarner, Continental, IHI, Mitsubishi

Description: VTG Vane
Application: Turbocharger
Material: High heat resisting steel and nickel based alloys, e. g. 1.4848, 1.4957, Inconel 713C
Manufacturing Process: Open air or vacuum investment casting
Machining: Grinding
Weight: 0,04 - 0,08 g
Customer: BMTS, BorgWarner, Continental, IHI, Mitsubishi

Name: Turbine wheel
Application: Turbo charger
Material: Heat resisting nickel alloys, e.g. GMR 235, Inconel 713 C & LC, Inconel 100, MAR M246, MAR M 247 LC
Manufacturing Process: Investment casting under vacuum
Weight: all sizes (30 – 3.000 g)
Customers: BMTS, BorgWarner, Continental, CZ, IHI, Mitsubishi, MTU

Description: Rocker arm
Application: Powertrain
Material: Steel, e. g. 1.2343
Manufacturing Process: Open air casting
Weight: 10 g
Customer: Gnutti Carlo S.P.A.


Description: Planet carrier
Application: Differential gear
Material: Steel 1.7147
Manufacturing Process: Open air investment casting
Weight: 3.200 g
Customer: Linamar and others

Aerospace

Eco-efficiency and alternative drive concepts with reduced fuel, noise and emissions are key objectives in the aerospace industry. Lightweight designs and simultaneously highly durable investment casting solutions from ZOLLERN help to achieve these objectives in many different alloys. The stringent quality assurance and a certified management system confirm the high quality of our services and products:

  • Guide and rotating blades, vanes, heat shields
  • Landing flap profiles, landing flap receptacles, housing
  • Landing gear and structural castings
  • Housing for optical, electronic and fuel systems

Energy

High-performance castings from ZOLLERN are important components in plants that generate energy. These are often key components in different industries

  • Oil & Gas Industry
  • Water
  • Coal
  • Renewables
  • Nuclear

For example they are used as:

  • Structural components, vanes and blades for gas turbines
  • Core Parts for Drilling Devices
  • Kaplan blades, guide vanes
  • Stator press rings for generators
  • Blades for REA fans
  • Pole heads and pole carriers
  • Burner components for gas turbines

Description: Francis impeller / guide blade
Purpose: Power generation from small hydropower
Material: Cu Al multi-component bronze/1.4317
Procedure for manufacture: Sand casting, printed core, milled mould

Description: Generator ring
Purpose: Power generation
Material: Special brass
Procedure for manufacture: Sand casting

Description: Pole terminals / connectors
Purpose: Current clamps
Material: Cu-Cr
Procedure for manufacture: Sand casting

Description: Turgo impeller
Purpose: Hydropower
Material: 1.4317.
Procedure for manufacture: Ceramic sand casting

Description: Sophisticated components for industrial gas turbines. Turbine blades and vanes with complex shapes as well as structural parts.
Application: Industrial gasturbine
Alloy: High-temperature alloys, e.g. Inconel 739, Hastelloy X, Nimonic, MAR M247 and more
Manufacturer Process: Vacuum Casting
Customer: Siemens, GE

Maritime

Cast components made of copper alloys and steel alloys impress in maritime application due to their corrosion resistance, geometric complexity and particularly high casting quality:

  • Fixed propellers as well as hub housings and blades for variable pitch propellers
  • High-pressure fittings and safety fittings for submarines
  • Valve housing for exhaust gas routeing, seawater treatment and ballast water treatment
  • Engine housing



Description: Filter housing
Purpose: Sea water filtration in submarine
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Cooler housing
Purpose: Sea water cooler submarine
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Cooler cap
Purpose: Sea water cooler for marine diesel engine
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Filter housing
Purpose: Sea water filtration in submarines
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Industrial Components

The sophisticated casting solutions of ZOLLERN meet the highest requirements in almost any technical sector. For example ZOLLERN supplies:

  • Castings for mechanical engineering
  • Rings and segments for slewing bearings
  • Dies for quartz glass production
  • Housing and cover, for example for heat exchanger
  • Castings for food and packaging machines
  • Electrode holder with cast-in cooling tube

Description: Valve housing
Purpose: Oxygen transport
Material: Special brass
Procedure for manufacture: Sand casting

Description: Housing body
Purpose: Diaphragm valve
Material: 1.4401.
Procedure for manufacture: Mask mould casting croning

Description: Cage ring
Purpose: Large-diameter anti-friction bearings
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting mono block

Description: Rotor
Purpose: Dynamometer for marine diesel engines
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: High-performance parts for industrial components
Application: High-end applications within mechanical engineering
Alloy: More than 500 different steel and aluminium alloys. Customized alloys to customer specifications.
Manufacturer Process: Vaccuum casting, open air melt, low pressure aluminium casting
Customer: International industry customers

Description: High-performance parts for industrial components
Application: High-end applications within mechanical engineering
Alloy: More than 500 different steel and aluminium alloys. Customized alloys to customer specifications.
Manufacturer Process: Vaccuum casting, open air melt, low pressure aluminium casting
Customer: International industry customers

Description: High-performance parts for industrial components
Application: High-end applications within mechanical engineering
Alloy: More than 500 different steel and aluminium alloys. Customized alloys to customer specifications.
Manufacturer Process: Vaccuum casting, open air melt, low pressure aluminium casting
Customer: International industry customers

Description: High-performance parts for industrial components
Application: High-end applications within mechanical engineering
Alloy: More than 500 different steel and aluminium alloys. Customized alloys to customer specifications.
Manufacturer Process: Vaccuum casting, open air melt, low pressure aluminium casting
Customer: International industry customers

Medical

We produce highly complex components for medical technology in a large number of materials. The application areas are:

  • Implants (e.g. hip and knee)
  • Surgical equipment
  • Medical instruments and accessories
  • Laboratory technology

Description: Implants in superalloys, knee- and hip
Application: Medical
Alloy: Cobalt-Alloy
Manufacturing Process: Roll-Over
Customer: International medical companies

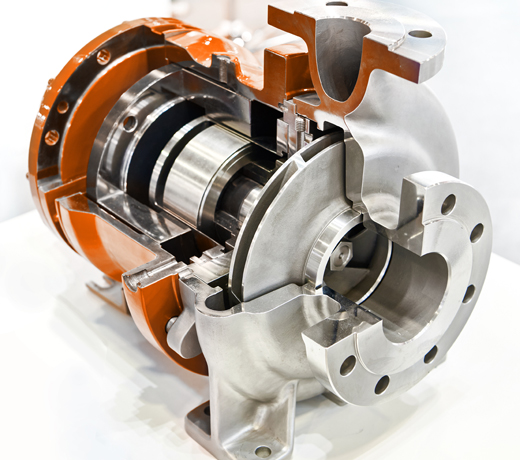

Pumps

Cast parts made of copper and nickel-based alloys, high-alloy steel grades, duplex, super duplex withstand high pressures high pressures and are resistant to corrosion and abrasion. They are used in pumps on land as well as above and under water.

  • Piston pump housing
  • Spiral housing
  • Impellers
  • Impeller hubs
  • Blades
  • Wear rings
  • In feed pumps for oil & gas, medical technology, food, fresh water and waste water.
  • In coolant pumps for nuclear power stations as well as surface and underwater vessels.
  • In extinguishing pumps, in pumps on submarines and drilling platforms and other maritime applications.



Description: Pump housing
Purpose: Sea water piston pump
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Manifold / impeller / pump housing
Purpose: Cooling sea water pump
Material: Cu Sn Zn Bronze/Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Pump housing and cover
Purpose: Sea water pumps
Material: Cu Al multi-component bronze
Procedure for manufacture: Sand casting

Description: Pump impeller
Purpose: Cooling water pump
Material: Cu Al special multi-component bronze with Zn
Procedure for manufacture: Sand casting milled mould

Arts

We transform artists’ ideas into unique cast products using CAD and cast simulation applications and plenty of experience in art casting. Castings are made for sculptures, for example, that meet very specific quality requirements.

Controlled solidification during the casting process creates almost pore-free surfaces under the casting skin. The model-free production using moulding material milling increases the economic efficiency of the artistic cast products.

  • Arts and art castings, manufactured according to data set and milled mould or according to any model, built from segments or cast as a monoblock.

Description: Relief board
Purpose: Art casting
Material: Tin bronze
Procedure for manufacture: Ceramic casting

Description: Fire flame
Purpose: Art casting
Material: Stainless steel and bronze
Procedure for manufacture: Sand casting

Description: Relief board
Purpose: Art casting / grave site decoration
Material: Tin bronze
Procedure for manufacture: Sand casting

Description: Bronze figure
Purpose: Art casting
Material: Tin bronze
Procedure for manufacture: Sand casting

Alloys, materials

More than 500 alloys for individual requirements

ZOLLERN casts almost every standardised alloy. Even non-standardised special alloys are created according to customer requirements or modified using existing alloys.

Investment casting alloy groups

  • Iron and steel alloys
    • High-temperature and heat-resistant steel casting
    • Tool steels
    • Case-hardening steels
    • Quenched and tempered steels
    • Rust and acid-resistant steels
    • Special materials
  • Nickel-based superalloys
    • Non-directional solidified (EQX)
    • Directional columnar crystalline solidified (DS)
    • Monocrystalline solidified (SX)
  • Cobalt superalloys
    • Stellite
    • Implant materials
  • Aluminium alloys

Alloys, materials

Steel and bronze alloys (sand casting and other casting processes)

Steel alloys (sand casting and other casting processes)

  • High alloyed
  • Special materials available by request
  • (Nickel basis, copper basis, Hastelloy)

Alloys, materials

Processes

Vacuum investment casting

Ground tapping method
Highly productive melting and casting process for complex components made of highly heat-resistant materials. Large quantities can also be produced in a short period of time with a very high level of reproducibility.

  • From individual parts to large series
  • High degree of purity
  • Possibility of targeted grain refinement on the castings
  • High degree of automation

Tilting crucible method
Melting and casting process for the production of complex components made of high-temperature resistant materials with a high purity and very good reproducibility.

  • From individual parts to large series
  • Very high degree of purity
  • High degree of automation in production, autonomous casting by casting cell (pre-heating to cooling)

Open air investment casting

Conventional method

The conventional open investment casting - is a lost wax process that is characterised by an almost unlimited selection of alloys.

  • Component weight up to 100 kg
  • Manual pouring off of the casting cluster in an oxygenated environment
  • The mould is filled manually via a ladle and is controlled by the casting speed
  • Maximum installation space 600 x 600 x 550 mm

Roll-over technology

A very high material quality is achieved with roll-over technology. After melting the alloy, the furnace rotates 180 degrees in a few seconds. The mould shell that is flanged directly to the furnace is filled precisely and with low turbulence in the process, also while using inert gas.

  • The influence of oxygen is eliminated by using an inert gas bell.
  • The maximum installation space is 580 x 400 mm diameter
  • Maximum casting weight of 100 kg

Sand casting

The sand casting process offers a high degree of freedom and the economic production of complex components with undercuts and cavities

  • For individual parts and small series
  • Production according to the permanent model, lost model or based on printed/milled moulded parts
  • Part weights: Copper alloys up to 8,000 kg, steel alloys up to 2,500 kg
  • Production using a lost mould

Croning casting / shell casting

Complex components with cavities and a high surface quality can be economically produced with Croning casting or shell casting.

  • Surface quality Ra 6.3 µm
  • Large series
  • Metallic models
  • Weight range up to about 20 kg
  • Part dimensions up to about 400 x 250 x 200 mm
  • Production using a lost mould

Ceramic casting

Ceramic casting is particularly well-suited for thin-walled components and high degrees of purity when casting special materials

  • Non-reactive moulding material
  • suitable for cores and moulds
  • Part dimensions 1400 x 1400 x 600 mm
  • Production using a lost mould

Continuous casting

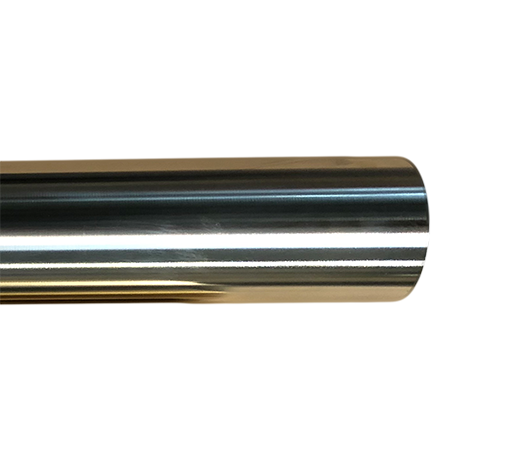

Round solid material is economically produced from copper alloys in the continuous casting process

  • Diameter 120 to 620 mm
  • Length up to 2,400 mm
  • Production using a permanent mould

Centrifugal casting

The centrifugal casting process is particularly well-suited for the economic production of rotationally-symmetrical bushings

  • Diameter up to 640 mm
  • Length up to 800 mm
  • Weight: max. 400 kg
  • Production using a permanent mould
Service
  • Development partnership - from the idea to the finished product
  • Casting optimisation and simulation
  • Model-free production
  • Technical consultation
  • In-house Toolmaking
